供應美國Vishay Revere稱重傳感器及儀表.Vishay Revere稱重傳感器及儀表:.Revere在2005年被Vishay公司收購，產品主要是稱重傳感器等稱重系統，類型包括單端梁，單點式，環扭矩，數字式，壓縮式，雙剪切梁式等等，主要用于暫停料斗，力測量，高架軌道秤，平臺秤，秤，車載重量，筒倉漏斗秤，托盤秤，皮帶秤，包裝機，單點料斗，和單點平臺等。

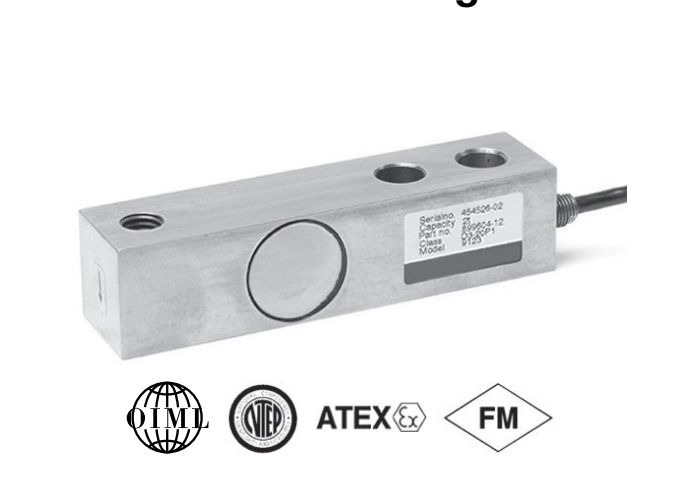

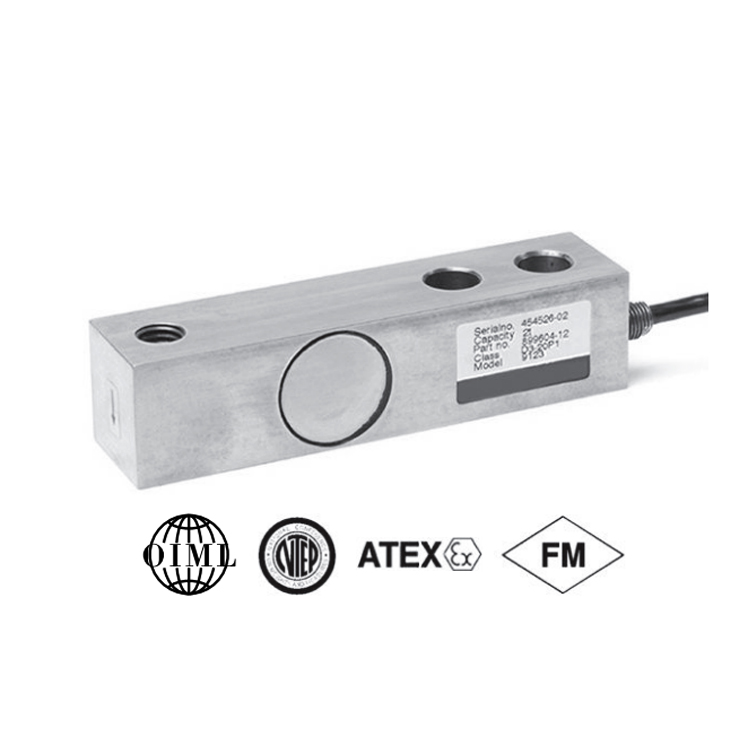

Vishay Revere懸臂梁式傳感器:
SHBxR:5KG   10kg   20kg   30kg   50kg   100kg
       200kg   350kg    500kg;
9102:  200lb    500lb    1Klb    2.5Klb;
9123/5123:   0.5, 1, 2, 5t ;250, 1, 2.5, 4, 5, 10 Klbs
ALC:   0.25, 0.5, 1, 2t ;
HCB:   0.25, 0.5, 1, 2, 5t ;
ACB:   0.5, 1, 2, 5t ;
SSB:   0.5, 1, 2, 5, 10t;
5723:  1, 1.5, 2.5, 4, 5, 7.5, 10 Klbs;
9613:  15, 250, 500, 750, 1000 lbs;
9723:  1, 1.5, 2.5, 4, 5, 7.5, 10 Klbs;

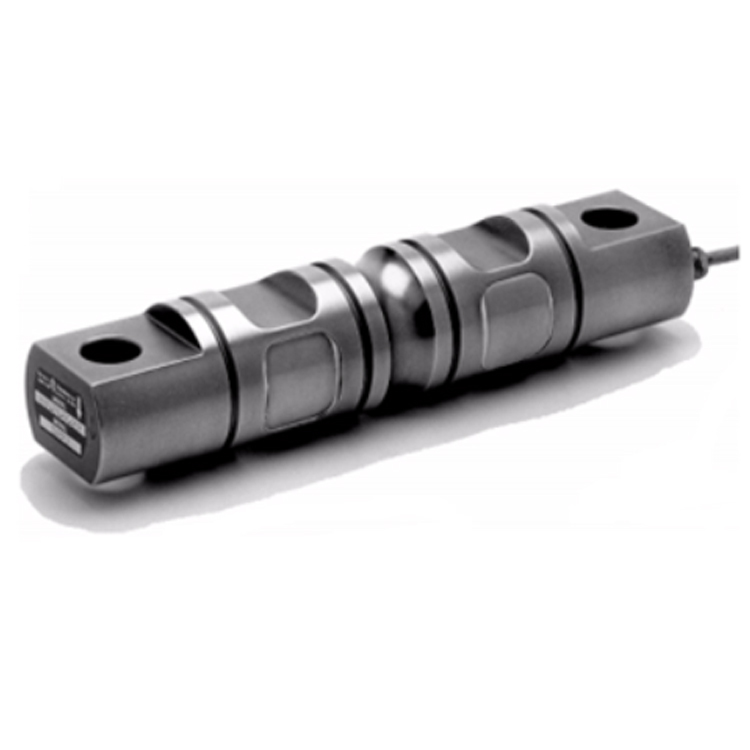

(2)Vishay Revere雙剪切梁式傳感器:
9103: 5, 10, 20, 30, 40, 50, 60, 100, 150 Klbs ;
5103: 5, 10, 20, 30, 40, 50, 60, 100, 150, 200, 250 Klbs;
5223: 50, 65, 100 Klbs  ;
5203: 1, 1.5, 2, 2.5, 4, 5, 10, 15, 20, 25, 35, 50, 75 Klbs;
9203: 1, 1.5, 2, 2.5, 4, 5, 10, 15, 20, 25, 35, 50, 75 Klbs;
5303: 25, 40, 50, 60, 75,100, 125 Klbs;
9303: 10, 15, 20, 30, 40, 50, 60, 75,100, 125, Klbs;
9323: 20, 25, 30, 40, 50, 60, 75, Klbs;
9403: 5, 10, 15, 20,30, 40, 50 Klbs;
9423: 10, 15, 20, 25, 30,40, 50, 60, 75 Klbs;
9803: 25, 50, 65, 100 Klbs;
9903: 50, 60, 75, 100 Klbs;
(3)Vishay Revere Universal cells:
BSP:  0.05, 0.125, 0.25, 0.5, 1.25, 2.5, 5t ;
9363/363:  0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 7.5, 10t
   50, 100, 200, 300, 500, 750, 1, 1.5, 2, 3, 5, 10 Klbs;
42U/43U: 5, 10, 20, 50, 100, 200, 250 Klbs;
62HU/63HU:  100, 200, 300, 500 lbs,   1, 2, 3 Klbs;
9922: 10, 25, 40, 50, 100, 200 Klbs;

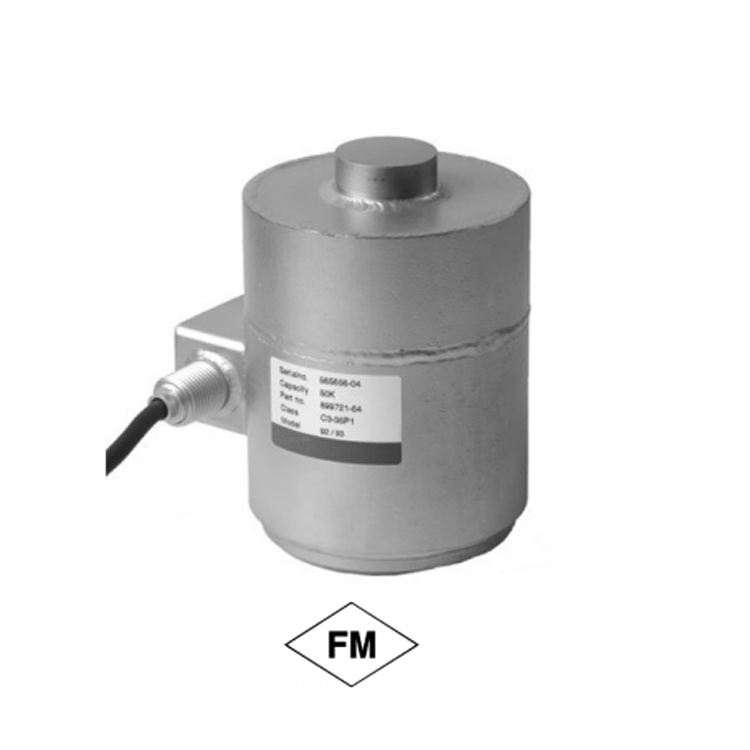

(4)Vishay Revere 壓式柱式傳感器:
RLC:  0.25,0.5, 1, 2, 3.5, 5, 10, 28, 60t;
CSP-M:  10, 25, 40, 60, 100t ;
ASC:  30, 40, 50t;
KSR:  6, 13, 28, 60, 130, 280 t;
CCC:  10, 20, 30, 50 Klbs;
92/93:  5, 10, 20, 25, 50, 100, 150, 200 Klbs;
792:   50, 100, 200 Klbs;
USP:  100, 250, 500, 1, 2.5, 5, 10, 25, 50, 100, 200, 300 Klbs;
usp1:  2.5K,   5K   lb;
 (5)Platform cells:
HPS:  6, 12, 30, 60kg;
642:  5, 10, 15, 20, 30, 50, 75, 100kg ;
652:  50, 75, 100, 150, 200,250, 300, 500, 1000kg;
640:  3, 5, 7, 10, 15, 20, 30, 35 kg;
650:  50, 100, 150, 200, 250kg;
672:  50, 100, 150, 200, 250, 300, 50, 400, 450, 500, 550, 600kg;
(6)Vishay Revere數字式傳感器:
DSC:  30, 40, 50 t ;
SCC:  10, 25, 40, 60, 100t ;
SBC:  0.5, 1, 2, 5t ;
(7)Vishay Revere特殊傳感器:FT40:
1, 5, 10, 20, 50 kg;
FT50:  1, 2, 5, 10, 20 lbs;
FT70:  2.2, 5, 10, 25, 50, 100, 250, 500 lbs;
801:   0.25, 0.5, 1, 2, 5 lbs;
802:   1, 2, 5, 10, 20, 40 lbs;
Vishay Revere壓力傳感器PT10:  100, 250, 500, 1, 3, 5, 7.5, 10 Kpsi;
Gozinta:10-02, 10-31;

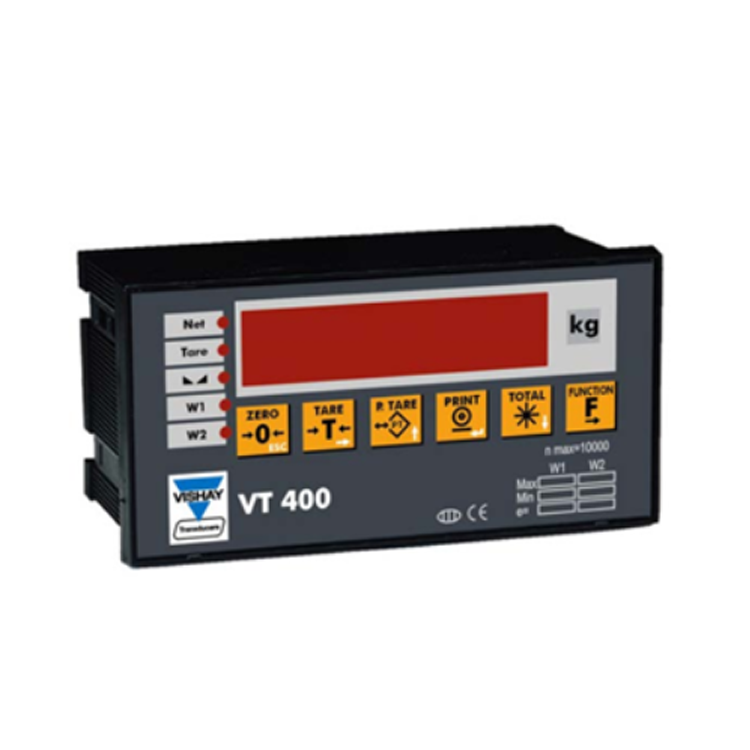

Vishay Revere顯示儀表:R301    R320    R323

美國 Revere Transducers稱重傳感器
revere懸臂梁
21709:  5102-D3-50-10P1 50 lb 10ft RTI 2mV/V 350 OHM WW FM IP67
21710:  5102-D3-100 -10P1 100 lb 10ft RTI 2mV/V 350 OHM WW FM IP67
21711:  5102-D3-200 -10P1 200 lb 20ft RTI 2mV/V 350 OHM WW FM
21712:  5102-D3-500 -10P1 500 lb 10ft RTI 2mV/V 350 OHM WW FM IP67
21713:  5102-D3-1K-10P1 1,000 lb 10ft RTI 2mV/V 350 OHM WW FM IP67
21714:  5102-D3-2.5 K-10P1 2,500 lb 10ft RTI 2mV/V 350 OHM WW FM IP67
21715:  5102-D3-5K-10P1 5,000 lb 10ft RTI 2mV/V 350 OHM WW FM IP67
21716:  5102-D3-10K -10P1 10,000 lb 10ft RTI 2mV/V 350 OHM WW FM IP67
revere懸臂梁

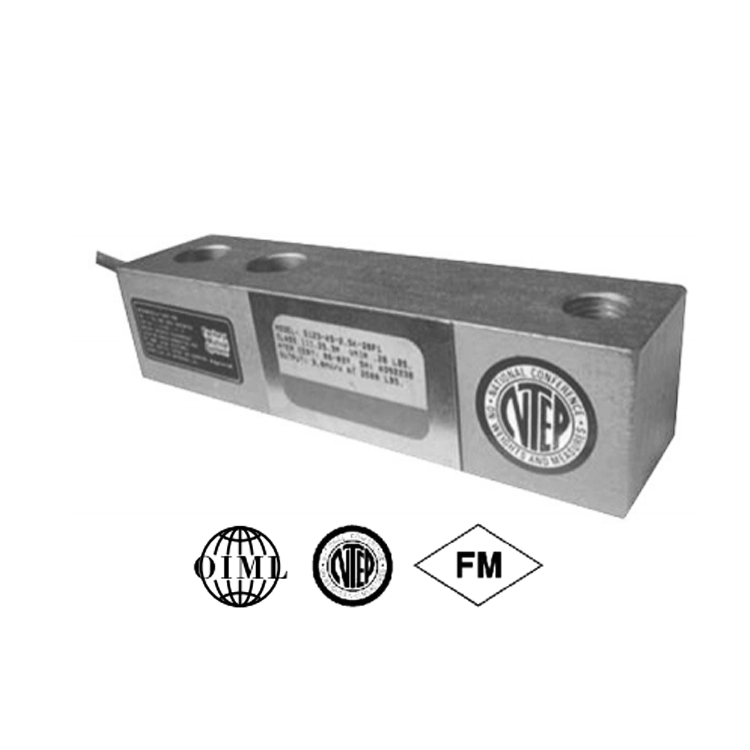

21516:  5123-A5-1K-20P1 1,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21517:  5123-A5-2.5 K-20P1 2,500 lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21518:  5123-A5-4K-20P1 4,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21519:  5123-A5-5K-20P1 5,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21520:  5123-A5-10K -20P1 10,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67
revere懸臂梁
31396:  5723-A5-1k-20P1 1,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5m FM Link IP67
31397:  5723-A5-2.5k-20P1 2,500lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5m FM Link IP
31398:  5723-A5-4k-20P1 4,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5m FM Link IP67
31399:  5723-A5-5k-20P1 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5m FM Link IP67
31400:  5723-A5-10k-20P1 10,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5m FM Link IP67
79713: Load Cell, SEB 5723-A5-1.5k-20P1 1500lb 20ft RTI 3 mv/v 350 OHM WW NTEP III 5M FM Link IP67
85306: Load Cell,SEB 5723-B10-7.5k-20P1 7500lb 20ft RTI 3 mv/v 350 Ohm WW NTEP IIIL 10M FM Link
revere懸臂梁
40917:  9102-A5-200-10P1 RTI 2mV/V 350 OHM FM SS WS IP66/68 NTEP III 5 M
40918:  9102-A5-500-10P1 RTI 2mV/V 350 OHM FM  WS IP66/68 NTEP III 5 M
40919:  9102-A5-1k-10P1 RTI 2mV/V 350 OHM FM SS WS IP66/68 NTEP III 5 M
40920:  9102-A5-2.5k-10P1 RTI 2mV/V 350 OHM FM WS IP66/68 NTEP III 5 M
69380:  9123-A5-250-250lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5 M FM IP67
69381:  9123-A5-500-500lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5 M FM IP67
69382:  9123-A5-1k-1000lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5 M FM IP67
revere懸臂梁
69383:  9123-A5-2.5k 2500lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5 M FM IP67
69384:  9123-A5-4k-4,000lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5 M FM IP67
69385:  9123-A5-5kSE 5,000lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5 M FM IP67
69386:  9123-A5-5k-5,000lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5M FM IP67
69387:  9123-A5-10K-10,000lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5M FM IP67
69388:  9123-A5-15K-15,000lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5M FM IP67
69389:  9123-A5-20K-20,000lb 20ft RTI 3mv/v 350 Ohm WW NTEP III 5M FM IP67

revere懸臂梁
17221:  9523-D3-1K-20P1 1,000 lb 20ft RTI 3mV/V 350 OHM WW FM  WS IP67
17222:  9523-D3-2.5 K-20P1 2,500 lb 20ft RTI 3mV/V 350 OHM WW FM  WS IP67
17223:  9523-D3-4K-20P1 4,000 lb 20ft RTI 3mV/V 350 OHM WW FM  WS IP67
17224:  9523-D3-5K-20P1 5,000 lb 20ft RTI 3mV/V 350 OHM WW FM  WS IP67
17225:  9523-D3-10K -20P1 10,000 lb 20ft RTI 3mV/V 350 OHM WW FM  WS IP67
revere懸臂梁
28801:  SHB-A3-20kg -10P5 20kg 10ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
28802:  SHB-A3-50kg -10P5 50kg 10ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
28803:  SHB-A3-O.1t -10P5 100kg 10ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
28804:  SHB-A3-0.2t -10P5 200kg 10ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
21538:  SSB-B10-1K-15P5 1,000lb 15ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
21539:  SSB-B10-2K-15P5 2,000 lb 15ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
21540:  SSB-B10-5K-15P5 5,000 lb 15ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
revere懸臂梁
21541:  SSB-B10-10K 15P5 10,000 lb 15ft RTI 2mV/V 350 OHM EW NTEP III 3 S FM  WS IP67
17365:  60030-50-50 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17366:  60030-75-75 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17367:  60030-150-150 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17368:  60030-300-300 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
revere懸臂梁
17369:  60040-25-25 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17370:  60040-50-50 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17371:  60040-75-75 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17372:  60040-100-100 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17373:  60040-150-150 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
17374:  60040-250-250 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
revere懸臂梁
17375:  60040-500-500 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP65
28925:  65023S1K-5113 1,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM  IP67
28926:  65023S2K-5113 2,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM  IP67
28927:  65023S2.5K-5113 2,500 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM  IP67
28929:  65023S4K-5113 4,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM  IP67
28930:  65023S5K-5113 5,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM  IP67
revere懸臂梁
28931:  65023S10K-5113 10,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM  IP67
17125:  65023-500-0107 500 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM IP67
17126:  65023-1K-1,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM THRU
17130:  65023-2K-2,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM THRU
17134:  65023-2.5K-2,500 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM Thru
revere懸臂梁
17142:  65023-4K-4,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM THRU
17146:  65023-5K-5,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM THRU
17150:  65023-10K-10,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM THRU
17154:  65023-15K, 15,000 lb 20ft Sensortronics 3mV/V 350 OHM WW FM THRU
17155:  65023-15K-0107 15,000lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP67
17158:  65023-20K, 20,000 lb 20ft Sensortronics 3mV/V 350 OHM WW FM THRU
revere懸臂梁
17159:  65023-20K-0107 20,000 lb 20ft Sensortronics 3mV/V 350 OHM WW FM IP67
21507:  65023A1K-5107 1,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21508:  65023A2K-5107 2,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21509:  65023A2.5K-5107 2,500 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21510:  65023A3K-5107 3,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21511:  65023A4K-5107 4,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21512:  65023A5K-5107 5,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM IP67
21513:  65023A10K-5107 10,000 lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5 M FM IP67
revere懸臂梁
69832:  65023A1.5K-5107 1500lb 20ft SENSTR 3mV/V 350OHM WW NTEP III 5 M FM IP67
17128:  65023-1K-0113 1,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  IP67
17129:  65023-1K-0114 1,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  THRU IP67
17132:  65023-2K-0113 2,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  IP67
17133:  65023-2K-0114 2,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  Thru IP67
17136:  65023-2.5K-0113 2,500 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  IP67
revere懸臂梁
17137:  65023-2.5K-0114 2,500 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  THRU IP67
17144:  65023-4K-0113 4,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  IP67
17145:  65023-4K-0114 4,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  THRU IP67
17148:  65023-5K-0113 5,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  IP67
17149:  65023-5K-0114 5,000 lb 20ft SENSORTRONICS 3mV/V 350 OHM WW FM  THRU IP67
revere懸臂梁
17152:  65023-10K-05 IP67
17153:  65023-10K-0114 10,000 lb 20ft Sensortronics 3mV/V 350 OHM WW FM  THRU IP67
17156:  65023-15K-0113 15,000 lb 20ft Sensortronics 3mV/V 350 OHM WW FM  IP67
17160:  65023-20K-0113 20,000 lb 20ft Sensortronics 3mV/V 350 OHM WW FM  IP67
17188:  65023-500-0113 500 lb 20ft Sensortronics 3mV/V 350 OHM WW FM  IP67
46499:  65023-250lb-0113 250lb 20ft Sensortronics 3mV/V 350 Ohm WW FM  IP67
revere懸臂梁
68826:  65023A2.5k--5141 2,500lb 9ft Senstrs 3mv/v 350 OHM WW NTEP III 5 FM
68827:  65023A1k--5141 1,000lb 9ft Senstrs 3mv/v 350 OHM WW NTEP III 5 FM
68824:  65023A-2.5k -5297 2,500lb 8.5ft Senstrs 3mv/v 350 OHM WW NTEP III 5 FM
68825:  65023A1k-5297 1,000lb 8.5ft Senstrs 3mv/v 350 OHM WW NTEP III 5 FM
revere懸臂梁
33552:  65083S-1k-5100 1000lb 20ft Sensortronics 2mV/V 350 OHM NTEP Class III 5m  WS FM IP67
33553:  65083S-2.5k 5100 2500lb 20ft Sensortronics 2mV/V 350 OHM NTEP Class III 5m  WS FM IP67
33554:  65083S-4k-5100 4000lb 20ft SENTRS 2mV/V 350 OHM NTEP Class III 5m  HS WS IP67
33555:  65083S-5k-5100 5000lb 20ft Sensortronics 2mV/V 350 OHM NEP Class III 5m  WS FM IP67
33556:  65083S-10k-5100 10,000lb 20ft SENTRS 2mV/V 350 OHM NTEP Class III 5m  WS FM IP67
revere懸臂梁
33734:  65083S-1k-5117H 1000lb 20ft Sensortronics 2mV/V 350 OHM NTEP Class III 5m  WS FM IP66/68
33735:  65083S-2.5k-5117H 2500lb 20ft Sensortronics 2mV/V 350 OHM NTEP III 5m  WS FM IP66/68
33736:  65083S-4k-5117H 4000lb 20ft Sensortronics 2mV/V 350 OHM NTEP III 5m  WS FM IP66/68
33737:  65083S-5k-5117H 5000lb 20ft Sensortronics 2mV/V 350 OHM NTEP III 5m  WS FM IP66/68
33738:  65083S-10k-5117H 10,000lb 20ft Sensortronics 2mV/V 350 OHM NTEP III 5m  WS FM IP66/68
17262:  65083-1K-0100 1,000 lb 20ft Sensortronics 3mV/V 350 OHM WW  WS IP67
revere懸臂梁
17263:  65083-2.5K-0100 2,500 lb 20ft Sensortronics 3mV/V 350 OHM WW  WS IP67
17264:  65083-4K-0100 4,000 lb 20ft Sensortronics 3mV/V 350 OHM WW  WS IP67
17265:  65083-5K-0100 5,000 lb 20ft Sensortronics 3mV/V 350 OHM WW  WS IP67
17266:  65083-10K-0100 10,000 lb 20ft Sensortronics 3mV/V 350 OHM WW  WS IP67
revere雙剪切梁式傳感器
17292:  5103-D3-150 K-30P1 150,000 lb 30ft RTI 3mV/V 700 OHM WW FM IP67
17293:  5103-D3-200 K-30P1 200,000 lb 30ft RTI 3mV/V 700 OHM WW FM IP67
17294:  5103-D3-250 K-30P1 250,000 lb 30ft RTI 3mV/V 700 OHM WW FM IP67
revere雙剪切梁式傳感器
34494:  5103-B10-5k-30P1 5000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34495:  5103-B10-10k-30P1 10,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34496:  5103-B10-20k-30P1 20,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34497:  5103-B10-30k-30P1 30,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34498:  5103-B10-40k-30P1 40,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
revere雙剪切梁式傳感器
34499:  5103-B10-50k-30P1 50,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34500:  5103-B10-60k-30P1 60,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34501:  5103-B10-100k-30P1 100,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM
21605:  5223-B10-50 K-40P1 50,000 lb 40ft RTI 3mV/V 700 OHM WW NTEP IIIL 10 M FM
21606:  5223-B10-65 K-40P1 65,000 lb 40ft RTI 3mV/V 700 OHM WW NTEP IIIL 10 M FM
revere雙剪切梁式傳感器
21607:  5223-B10-100K-40P1 100,000 lb 40ft RTI 3mV/V 700 OHM WW NTEP IIIL 10 M FM
17328:  9103-D3-5K-30P1 5,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67
17329:  9103-B10-10k-30P1 10,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67 NTEP IIIL
17330:  9103-B10-20K-30P1 20,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67 NTEP IIIL
17331:  9103-B10-30K-30P1 30,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67 NTEP IIIL
revere雙剪切梁式傳感器
17332:  9103-B10-40K-30P1 40,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67 NTEP IIIL
17333:  9103-B10-50K-30P1 50,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67 NTEP IIIL
17334:  9103-B10-60K-30P1 60,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67 NTEP IIIL
17335:  9103-B10-100K-30P1 100,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67 NTEP
17336:  9103-D3-150 K-30P1 150,000 lb 30ft RTI 3mV/V 700 OHM WW FM  IP67
revere雙剪切梁式傳感器
84150: DEB 9223-B10-50k 50000 lb 40 ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST
84151: DEB 9223-B10-65k 65000 lb 40 ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST
84152: DEB 9223-B10-100k 100000 lb 40 ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST
84153: DEB 9223-B10-125k 125000lb 40 ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST
revere雙剪切梁式傳感器
84156: 9323 Link Beam,  , DEB 9323-B-10-50kb 50000lb 30ft RTI 3mv/v 700 Ohm WW NTEP
84157: DEB 9323-B10-60k 60000lb 30ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST
84158: Load Cell, DEB 9323-B10-75k 75000lb 30ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M
79711: Load Cell, DEB 9423-B10-50k-30P1 50000lb 30ft RTI 3 mv/v 700 OHM WW NTEP IIIL
revere雙剪切梁式傳感器
79712: Load Cell, DEB 9423-B10-60k-30P1 60000lb 30ft RTI 3 mv/v 700 OHM WW NTEP IIIL
69489:  9803-B10-50 K-30PI 50,000lb 30ft RTI 3mv/v 700 OHM WW NTEP IIIL 10M
69490:  9803-B10-65 K-30PI 65,000lb 30ft RTI 3mv/v 700 OHM WW NTEP IIIL 10M

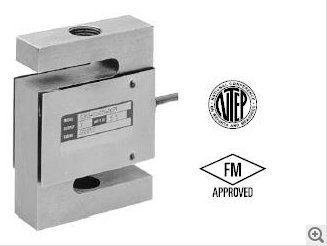

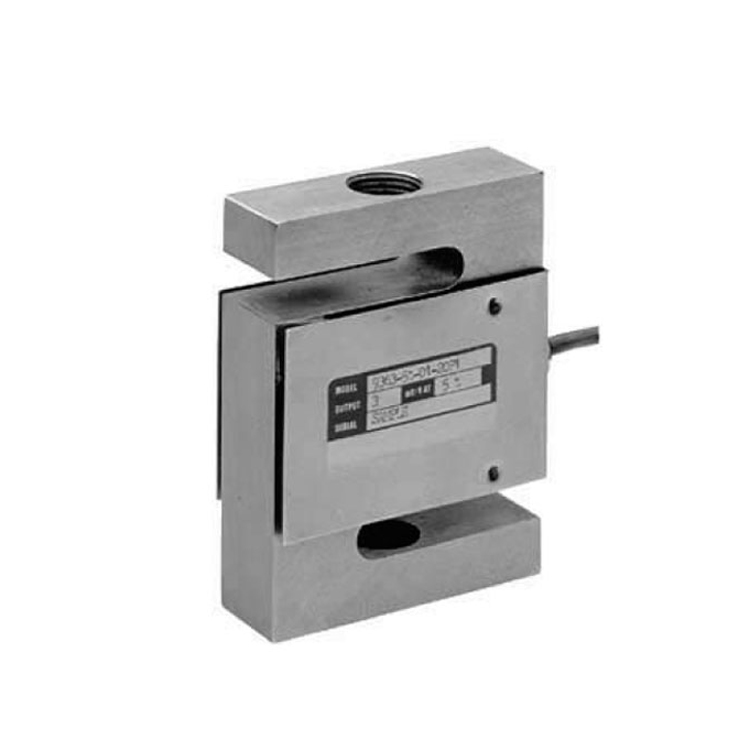

REVERE S型稱重傳感器
17043: Load Cell,SBM 363-D3-50-20P1 50 lb 20ft RTI 3mV/V 350 OHM WW FM

21463: Load Cell,SBM 363-B10-100 -20P1 100 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10
21464: Load Cell,SBM 363-B10-200 -20P1 200 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
21465: Load Cell,SBM 363-B10-300 -20P1 300 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
21466: Load Cell,SBM 363-B10-500 -20P1 500 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
REVERE S型稱重傳感器
21467: Load Cell,SBM 363-B10-750 -20P1 750 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
21468: Load Cell,SBM 363-B10-1K-20P1 1,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
21469: Load Cell,SBM 363-B10-1.5 K-20P1 1,500 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
21470: Load Cell,SBM 363-B10-2K-20P1 2,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
21471: Load Cell,SBM 363-B10-3K-20P1 3,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
REVERE S型稱重傳感器
21472: Load Cell,SBM 363-B10-5K-20P1 5,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
21473: Load Cell,SBM 363-B10-10K -20P1 10,000 lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM
17076:  9363-D3-50-20T1 50lb 20ft RTI 3mV/V 350 OHM WW FM
REVERE S型稱重傳感器
31308:  9363-B10-10k-20P1 10,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31309:  9363-B10-3k -20P1 3,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31310:  9363-B10-2k-20P1 2,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31311:  9363-B10-1.5k-20P1 1,500lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31312:  9363-B10-1k-20P1 1k 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
REVERE S型稱重傳感器
31313:  9363-B10-750-20P1 750lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31314:  9363-B10-500-20P1 500lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31315:  9363-B10-300-20P1 300lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31316:  9363-B10-200-20P1 200lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
REVERE S型稱重傳感器
31317:  9363-B10-100-20P1 100lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
31318:  9363-B10-5k-20P1 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM  IP67
98875: SBM 9363-B10-Load Cell, 2.5K-20T1 2,500lb 20ft RTI 3mV/v 350 OHM WW NTEP IIIL 10 S FM  IP67

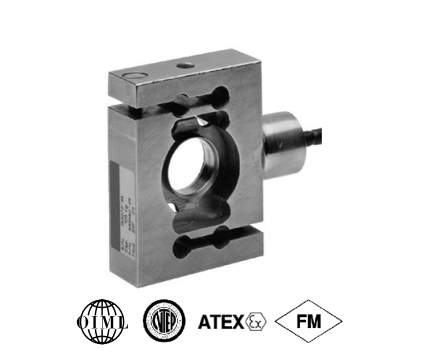

17032:  BSP-D3-10K-30P5 10,000 lb 30ft RTI 3mV/V 350 OHM EW FM  WS
REVERE S型稱重傳感器
21447:  BSP-B10-100 -30P5 100 lb 30ft RTI 3mV/V 350 OHM EW NTEP IIIL 10 S FM  WS IP67
21448:  BSP-B10-250 -30P5 250 lb 30ft RTI 3mV/V 350 OHM EW NTEP IIIL 10 S FM  WS IP67
21449:  BSP-B10-500 -30P5 500 lb 30ft RTI 3mV/V 350 OHM EW NTEP IIIL 10 S FM  WS IP67
21450:  BSP-B10-1K-30P5 1,000 lb 30ft RTI 3mV/V 350 OHM EW NTEP IIIL 10 S FM  WS IP67
21451:  BSP-B10-2.5 K-30P5 2,500 lb 30ft RTI 3mV/V 350 OHM EW NTEP IIIL 10 S FM  WS IP67
21452:  BSP-B10-5K-30P5 5,000 lb 30ft RTI 3mV/V 350 OHM EW NTEP IIIL 10 S FM  WS IP67
美國Vishay Revere稱重傳感器及其顯示儀表，品質優異，質量有保證！主要應用于：
罐裝秤、平臺秤、配料秤、力值測定、吊鉤秤、包裝秤、過載保護、汽車衡、吊秤、試驗機和皮帶秤等等。
